Voltmeter

Voltmeter (Indus Panel Meter) can be used in LT/HT systems. Three Phase Voltages and line voltages are Measured and Displayed.

Description

Voltmeter (Indus Panel Meter) can be used in LT/HT systems. Three Phase Voltages and line voltages are Measured and Displayed.

Salient Features:

  • 3 phase 3wire / 3 phase 4 wire Selection at Site.
  • PT Primary Programmable at site.
  • Aux Supply: 85Volt – 300 volt.
  • Input Voltage: 520V(max) Line to Line.
  • 4 Digit Super Bright LED
  • Accuracy : Class 1.0

Technical Specifications:

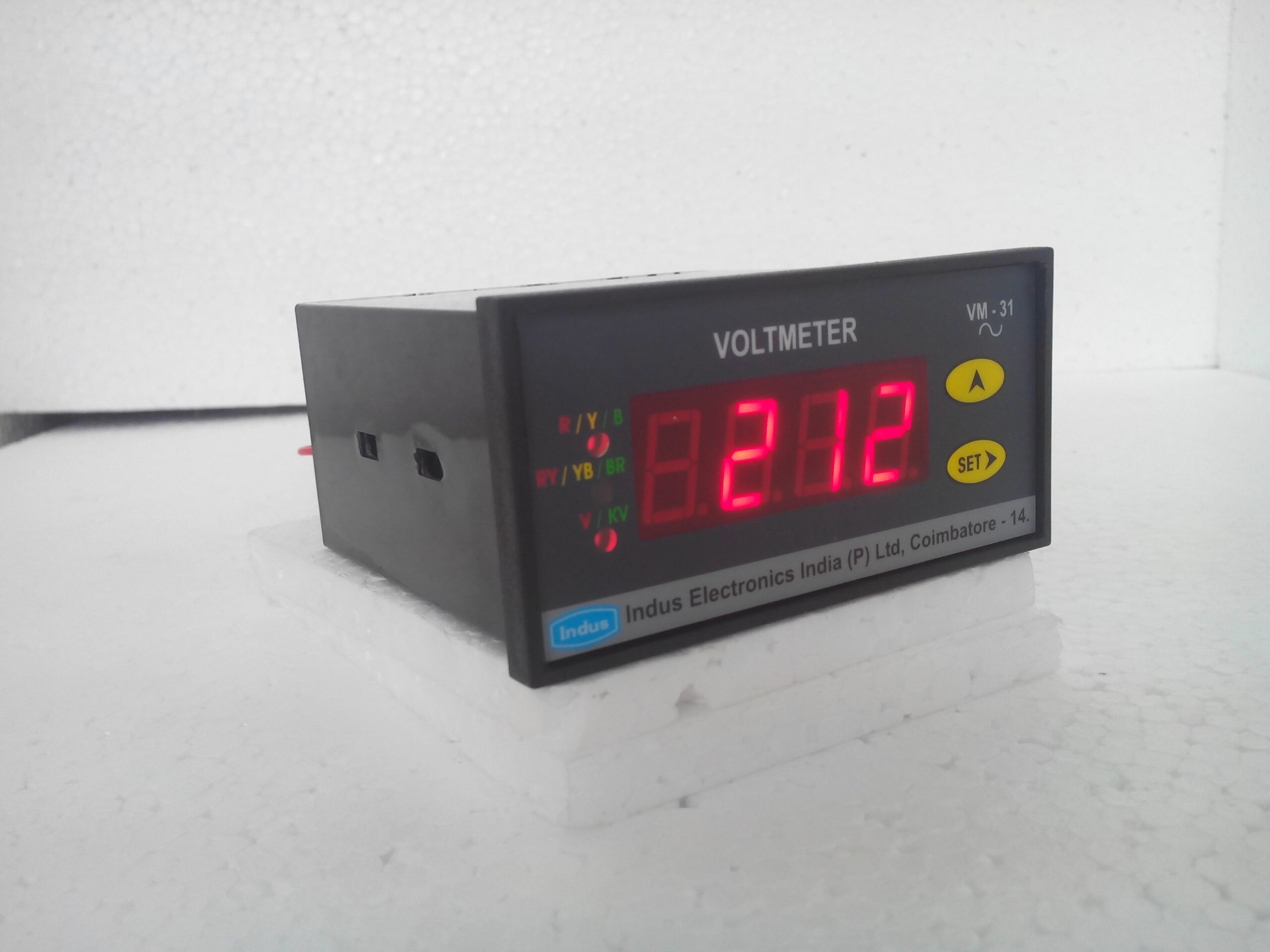

  Model: Voltmeter-31

ParameterVoltmeter
Voltage inputs300V max (Line to Neutral)
520V max (Line to Line)
Auxiliary supply85V-300V AC, 50/60 Hz
Display4 Digit 7 Segment LED -- single line
Dimension96mm x 48mm x 87mm

Model: Voltmeter VM33

ParameterVoltmeter
Voltage inputs300V max (Line to Neutral)
520V max (Line to Line)
Auxiliary supply85V-300V AC, 50/60 Hz
Display4 Digit 7 Segment LED -- Three line
Dimension96mm x 96mm x 75mm
